Fire-Rated Protection that Performs

Featuring the All-New 500i Series Insulated Rolling Fire Door

When fire safety is non-negotiable, ASTA America delivers. Our fire-rated rolling door solutions are engineered to protect lives, safeguard property, and meet the most demanding building codes. Whether you're securing a high-traffic commercial facility or compact service opening, ASTA America has a fire-rated solution tailored to your needs.

Explore our lineup of fire-rated doors, each designed with unique features to meet a range of performance and aesthetic requirements.

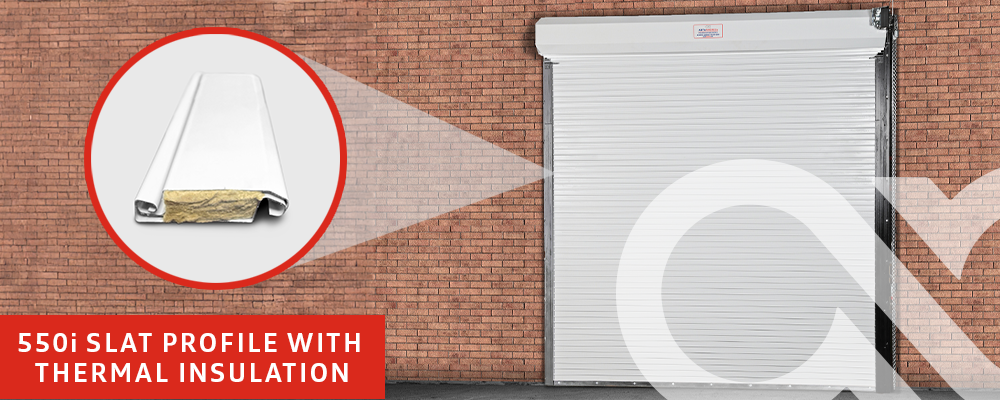

Introducing the 500i Series: Insulated Strength Meets Fire Resistance

The 500i Series is our most advanced fire-rated door yet, combining up to 3-hour UL fire ratings with thermal insulation for environments where both fire protection and energy efficiency are essential.

• • • UL fire ratings up to 3 hours
    • R-Value of 4.7 with mineral wool insulation
    • Slat options: 22, 20, or 18 gauge galvanized painted steel with 24 gauge backer slat
    • Sizes up to 30’ wide or 30' high (not to exceed 600 square feet)
    • Compatible with alarm systems, fusible links, and smoke detectors

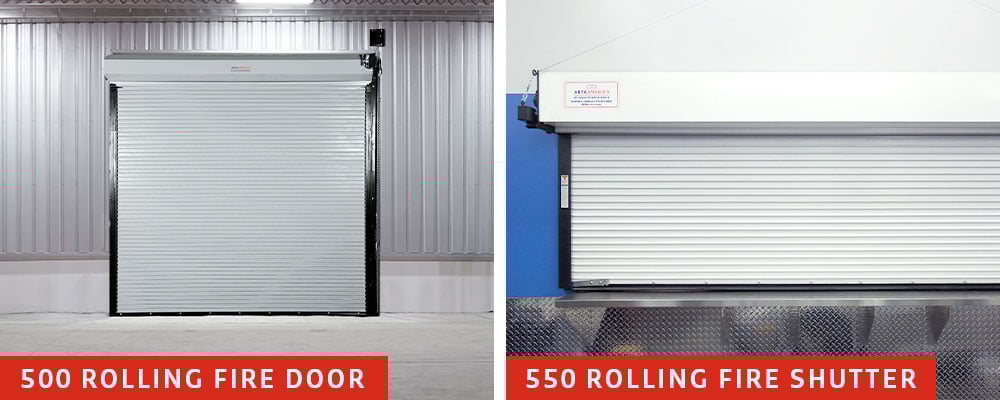

The Trusted 500 Series: Versatile, Durable and Code-Compliant

Our flagship 500 Series Rolling Fire Door is built for reliability and performance. With multiple slat profiles, finish options, and fire ratings up to 4 hours, it's ideal for a wide range of commercial and industrial applications.

• • • UL fire ratings: 45 min, 1.5 hr, 3 hr and 4 hr
    • Slat options: 22, 20, or 18-gauge galvanized or stainless steel
    • Mounting flexibility between-jamb or under-lintel
    • Vision panels and weather seals available
    • High-cycle springs: 25k, 50k or 100k cycles
    • Auto-reset for easy drop testing

The Compact 550 Series: Fire-Rated Protection for Smaller Openings

Perfect for pharmacies, cafeterias, concession stands and more, the 550 Series Rolling Fire Shutter offers reliable fire protection in a compact, cost-effective design.

• • • UL fire ratings: 3/4 hour and 1.5 hour
    • Sizes up to 12' x 8'
    • Manual push-up for crank operation
    • 22-gauge steel or stainless steel slats
    • UL-rated jamb brush seal and flame baffle

Standard Features Across All Models Include:

• • • Fail-safe operation via fusible links, smoke detectors or alarm systems
    • Durable finishes with up to 30-year film integrity and 25-year no-fade warranties
    • Steel endlocks and enclosed hoods
    • UL labeling for code compliance and peace of mind

Safety Isn’t Optional—It’s Essential.

ASTA America fire-rated doors are trusted by architects, contractors, and facility managers nationwide. With the addition of the 500i Series, our lineup now offers even more ways to protect what matters most. Don’t leave fire protection to chance. When every second counts, our doors deliver.

Ready to enhance your fire protection strategy? Contact us today to find the right solution for your facility.
